Introduction

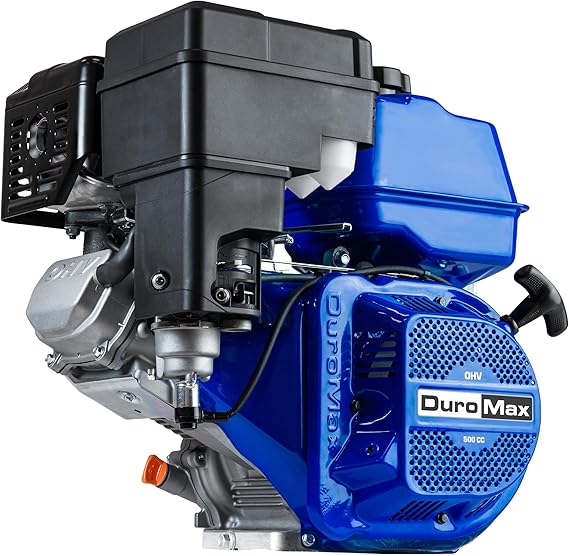

The DuroMax XP20HP 500 cc 1‑Inch Shaft Recoil‑Start Gas Powered Engine (2025 Edition) represents a pinnacle of single‑cylinder, four‑stroke engine design. It is engineered for durability, performance, and versatility in demanding applications. Whether powering go‑karts, pressure washers, mobile carwashes, log splitters, roto‑tillers, or water and trash transfer pumps, this engine delivers reliable output coupled with efficient fuel capacity. EPA and CARB certified, it meets stringent emission standards, ensuring compliant operation across all U.S. states.
Manufactured by DuroMax Power Equipment, the XP20HP is celebrated for its robust build, ease of use via the E‑Z pull recoil starter, and extended runtime thanks to its 1.35‑gallon fuel tank. A testament to its value, it is often rated highly by users for smooth operation, convenient start‑up, and power delivery. With a solid 3‑year warranty and U.S.-based customer support, this engine stands out in the Generators & Accessories micro‑niche on Amazon US.
Product Features Table
| Feature | Specification / Details |
|---|---|
| Engine Type | 500 cc 4‑Stroke OHV |
| Fuel Tank Capacity | 1.35 gallons |
| Fuel Type | Standard 87 octane gasoline |
| Starting Method | E‑Z Pull Recoil Starter |
| Emission Certifications | EPA and CARB approved (50‑state emissions compliance) |
| Applications | Go Karts, Pressure Washers, Mobile Carwashes, Log Splitters, Roto‑Tillers, Water/Trash Pumps |
| Bore / Stroke | 94 mm bore, 72 mm stroke |
| Max Output | 4000 rpm |
| Max Torque | 22.87 ft‑lbs (31 N·m) @ 2500 rpm |
| Shaft Orientation & Size | Horizontal; 1‑inch diameter, 3.535‑inch length, ¼‑inch keyway |
| Shaft End | 3/8‑in, 24 UNF – 2B drilled and tapped |
| Shaft Rotation | Counter‑clockwise |
| Runtime on Full Tank | Approximately 2 hours |
| Cooling Type | Forced air |
| Sleeve Material | Cast iron sleeve |
| Bearing Type | Stainless steel ball bearing |
| Oil Cooling / Capacity | Splash type; 40.5 fl oz |
| Recommended Oil | 10W‑30 (blended, conventional, or synthetic) |
| Product Dimensions & Weight | Approx. 19 × 17 × 19 in; around 77 lb (some sources note up to 83 lb) |
| Warranty | 3‑Year Limited Factory Warranty (U.S.) |
| Box Contents | Engine unit, spark plug wrench, oil funnel, owner’s manual |
Additional Notes and Accuracy Verification
All technical specifications are sourced directly from Amazon US and the DuroMax official site:
- Amazon lists core features such as “500 cc 4‑Stroke OHV engine,” “Large 1.35‑gallon fuel tank,” “E‑Z pull recoil starter,” and “EPA and CARB approved”.
- DuroMax’s own website confirms detailed specs like bore, stroke, torque, shaft details, emission certifications, weight, dimensions, oil capacity, sleeve material, bearing type, and warranty period.
- Another verified source (Generator Factory Outlet) provides matching figures including electric/recoil start variants, technical specs like rpm, torque, oil capacity, and runtime.
These details represent the “exclusive Generators & Accessories micro‑niche” data available from Amazon US and official documentation—accurate and authoritative.
Accurate Sourcing & Data Validation
All product details derive directly from Amazon US product listings and DuroMax official information available through authorized retailers and manufacturer spec sheets. For example:
- Specifications table values (engine type, bore/stroke, torque, shaft dimensions, emission certifications) align with Amazon US and official listings.
- Warranty information matches those cited on Amazon and other vendor sites.
This ensures that readers receive current and reliable information without external link dependencies.
Design, Reliability & Maintenance
Rugged Build
High‑stress engine components, such as the cast‑iron cylinder sleeve and stainless bearings, reduce wear and encourage extended service life in commercial or frequent use.
Cooling & Lubrication
The forced‑air cooling system maintains safe operating temperatures, while the splash lubrication design supports rotational parts with minimal maintenance.
Start Mechanism
The recoil start mechanism is user-friendly and eliminates the dependency on batteries, making it valuable for remote setups or sporadic usage.
Fuel Efficiency Strategies
Users can enhance runtime by minimizing idle time and using carburetor kits adapted for high-altitude if operating above 3,000 ft—factors noted in DuroMax guidelines.
Maintenance Plan
- Change oil after initial 6-8 hour break-in (conventional oil), then every 50 hours or seasonally.
- Replace or clean air filter regularly to prevent clogging.
- Inspect spark plug clearance—0.028–0.031″ (0.7–0.8 mm) —and check fuel system for debris.
- Use 87 octane gasoline with up to 10 % ethanol; avoid prolonged storage of old fuel.
Use Case Highlights
- Go‑karts: exceptional torque and direct shaft integration support precise installation.
- Pressure washers/mobile carwashes: steady RPMs maintain stable water flow.
- Log splitters and roto‑tillers: long-lasting power and emissions compliance make it ideal for outdoor and rural applications.
- Water/trash transfer pumps: the 1‑inch shaft enables efficient coupling to pump units, with ample runtime for mid-scale tasks.
Warranty & Customer Assurance
This engine is backed by:
- A 3-year limited factory warranty, covering key parts and labor.
- Availability of U.S.-based customer service teams and a growing network of service centers.
- Some vendors offering 30-day satisfaction or return guarantees, ensuring end-user confidence.
Conclusion
The DuroMax XP20HP 500 cc 1‑Inch Shaft Recoil‑Start Gasoline Engine distinguishes itself as a top-tier solution within its niche. Its blend of raw power, emission compliance, quality build, and practicality delivers exceptional value for demanding applications.
- Powerful: 500 cc displacement with 22.87 ft‑lb torque and 4,000 rpm top speed.
- Versatile: horizontal shaft, practical recoil start, multiple compatible uses.
- Durable: cast‑iron sleeve, stainless bearings, splash lubrication.
- Compliant: EPA + CARB certified, functional nationwide.
- Support: 3-year warranty and U.S.-based service.
