Power outages, RV trips, and off-grid projects all require different levels of electrical capacity, so choosing a portable generator starts with understanding how much power you actually need. The Westinghouse WGen3600v is a conventional gasoline generator rated for 3,600 running watts and 4,650 peak watts, with a 4-gallon fuel tank and a 120V RV-ready outlet.

ORDER NOW AT AMAZON

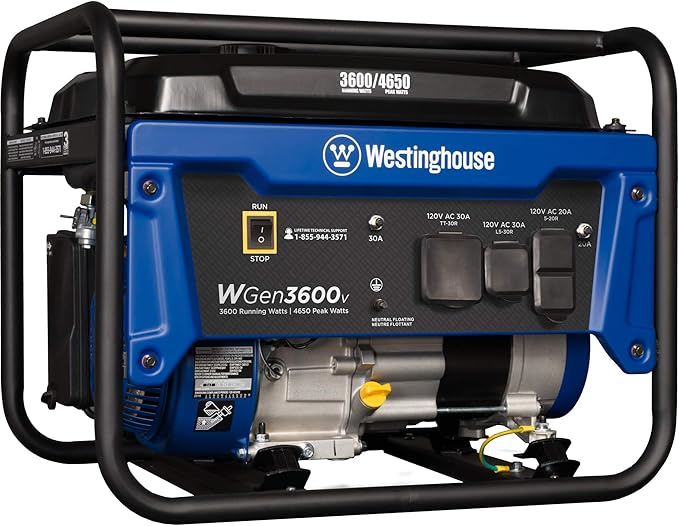

The WGen3600v uses a 212cc four-stroke OHV engine and a recoil starter. Unlike an inverter generator, it uses a conventional open-frame design, so its appeal is centered on straightforward operation, useful 120V output, and a relatively large fuel tank rather than quiet operation or advanced electronic features.

For RV owners, homeowners preparing for power outages, and people who need portable power for tools, the outlet configuration is particularly relevant. The generator includes a 30A TT-30R RV receptacle, a 30A L5-30R twist-lock outlet, and a 20A 120V household duplex outlet.

One important detail is easy to miss when comparing specifications: the advertised 14-hour runtime applies to a 25% load, not a 50% load. Westinghouse lists approximately 10.5 hours at 50% load. The model is also not CARB compliant, does not include a built-in carbon monoxide sensor, and does not include a wheel and handle kit as standard equipment.

Westinghouse WGen3600v Specifications

Power Output and Engine Performance

The Westinghouse WGen3600v uses a 212cc four-stroke OHV engine with a cast-iron sleeve. It is rated for 3,600 running watts and can provide up to 4,650 peak watts for short-duration startup demands.

The distinction between running watts and peak watts matters when planning what to connect. The 3,600-watt figure represents the generator’s continuous rated output, while the higher peak figure is intended to accommodate temporary startup demands from equipment with electric motors.

For example, refrigerators, sump pumps, power tools, lights, and televisions can all be reasonable applications for a generator in this class. However, you should not assume that the WGen3600v can run every appliance in a home simultaneously.

Before connecting several devices, add their running watt requirements and consider the starting wattage of equipment with motors or compressors. A refrigerator or sump pump may require substantially more power when its motor starts than it uses once running.

The WGen3600v is also a 120V-only generator. It does not provide 240V output, so it is not designed for larger 240V appliances or applications that require a 120/240V generator connection.

Fuel Tank and Runtime

The WGen3600v has a 4-gallon gasoline tank, giving it useful operating time for its size.

Westinghouse rates the generator for up to 14 hours at 25% load. At a 50% load, the manufacturer’s specification lists approximately 10.5 hours of runtime.

That distinction is important because the 14-hour number should not be interpreted as a typical runtime while operating the generator at half of its rated capacity.

Actual runtime will depend on the electrical load, fuel conditions, temperature, altitude, and other operating factors. If you are powering only a refrigerator, several lights, a television, and smaller electronics, the generator may operate at a relatively light load. Running several power-hungry tools or appliances will consume fuel more quickly.

The built-in fuel gauge is another useful feature because it lets you check the fuel level without simply guessing how much gasoline remains in the tank.

Conventional Generator vs. Inverter Generator

The WGen3600v is a conventional open-frame generator, not an inverter generator.

That distinction matters when comparing it with newer portable inverter models. Conventional generators can provide substantial output without the added complexity of an inverter system, but they generally do not offer the same combination of low noise, compact design, and clean inverter power.

The WGen3600v also lists total harmonic distortion of ≤23%. Because of that, buyers who specifically need an inverter generator for sensitive electronic equipment may want to compare inverter models before choosing this one.

For basic household loads, RV equipment, lighting, refrigerators, pumps, and many tools, the conventional design can still be practical. The important point is to choose the generator based on the type of equipment you intend to power rather than looking only at the wattage number.

Design and Portability

At 99.5 pounds dry, the WGen3600v is not a lightweight portable generator.

It is portable in the sense that it can be transported between locations, but moving a generator of this size is considerably easier when a proper wheel and handle system is installed.

The standard WGen3600v configuration should not be confused with a package that automatically includes the wheel and handle kit. Westinghouse sells a separate WGen3600 Series Wheel and Handle Kit designed for models including the WGen3600v.

The optional kit uses 8-inch never-flat wheels and a foldable handle. It is designed to make moving the generator across uneven ground easier and also helps reduce sliding during transportation.

If you plan to store the generator in a garage and occasionally move it outside, the additional mobility kit can be worth considering when calculating the total purchase cost.

Noise Level

Westinghouse lists the WGen3600v at 68 dBA.

That figure should be viewed in context. This is a conventional open-frame gasoline generator, not a quiet inverter generator with an enclosed design.

If the generator will be used at home during an outage, noise may be less important than having enough power for essential appliances. For camping or RV use, however, the operating noise may be more noticeable, particularly in a quiet campground.

If low noise is one of your main requirements, compare the WGen3600v with an inverter generator before buying.

Starting and Ease of Use

The WGen3600v uses a recoil starter, so there is no electric-start battery to charge or replace.

The control panel is relatively straightforward. It includes the engine switch, circuit breakers, and the three 120V receptacles.

Westinghouse also uses yellow touchpoints to help identify important controls on the generator.

The basic setup is not complicated, but this is still a gasoline-powered engine that requires proper preparation. Before the first startup, owners should add the specified engine oil, inspect the generator, add appropriate gasoline, and follow the operating procedure in the owner’s manual.

As with any portable generator, reading the manual before an emergency occurs is preferable to learning how to operate the machine during a power outage.

Outlets and RV Connectivity

One of the strongest practical features of the WGen3600v is its selection of 120V outlets.

120V 20A 5-20R Duplex Outlet

The household duplex receptacle can be used for standard 120V equipment and extension cords.

It is useful for smaller household loads such as lights, televisions, refrigerators, chargers, and other compatible equipment.

120V 30A TT-30R RV Outlet

The TT-30R RV-ready outlet is especially relevant to travel trailer owners.

A 30A RV connection allows compatible RV equipment to connect directly to the generator without relying on a collection of household receptacles.

However, the available power is still limited by the generator’s 3,600-watt continuous rating. If your RV air conditioner has a high startup demand, check its specifications and consider what other appliances will be operating at the same time.

120V 30A L5-30R Outlet

The L5-30R twist-lock receptacle provides another 30A 120V connection for compatible equipment.

This can be useful for certain tools and other equipment that use a twist-lock connection.

The generator does not provide 240V output, so users should verify the electrical requirements of their equipment before purchasing.

Safety Features and Important Limitations

The WGen3600v includes several basic protection features.

The automatic low-oil shutdown is designed to stop the engine when the oil level becomes too low, helping protect the engine.

The generator also has overload protection and automatic voltage regulation.

The outlets have protective covers to help protect them from dirt and moisture when they are not being used.

However, there are several limitations buyers should know about.

The current manufacturer specifications list no built-in carbon monoxide sensor and no GFCI outlets. Westinghouse also lists the WGen3600v as not CARB compliant.

The CARB point is particularly important for California shoppers. If you live in California or another location with specific emissions requirements, verify that this particular model is permitted for your intended use before ordering.

Carbon Monoxide Safety

A gasoline generator produces carbon monoxide, an odorless and potentially deadly gas.

The WGen3600v should only be operated outdoors and well away from doors, windows, vents, and other openings. It should never be operated inside a home, garage, basement, crawlspace, shed, or other enclosed area.

Because the WGen3600v does not have a built-in CO sensor, proper placement is especially important.

A working carbon monoxide alarm inside the home is also an important part of a backup-power safety plan.

Never attempt to make the generator safer by operating it indoors with a garage door or window open. Ventilation does not make indoor generator operation safe.

Maintenance and Fuel Storage

The WGen3600v uses a conventional gasoline engine, so ownership includes the normal maintenance associated with this type of generator.

Oil changes, air-filter inspection, spark-plug maintenance, and other service should be performed according to the manufacturer’s maintenance schedule.

Fuel storage also deserves attention. If the generator is kept primarily for emergencies, stale gasoline can become a problem if the machine sits unused for long periods.

Use appropriate fuel-storage practices and follow the owner’s manual for fuel treatment and storage procedures.

It is also a good idea to periodically inspect the generator rather than waiting until the next major power outage to discover that it needs maintenance.

Warranty

Westinghouse lists a 3-year limited residential warranty for the WGen3600v and a 1-year limited commercial warranty.

The warranty period is useful information when comparing generators, but buyers should review the actual warranty terms and conditions before purchasing.

Keep the purchase receipt and follow the manufacturer’s registration and maintenance recommendations where applicable.

Who Is the Westinghouse WGen3600v Best For?

The WGen3600v makes the most sense for buyers who specifically need a conventional 120V gasoline generator with 3,600 running watts and an RV-ready 30A connection.

It can be a practical fit for:

• Homeowners who need basic 120V backup power
• RV owners who use a 30A TT-30R connection
• Campers who do not require an inverter generator
• DIY users who need portable power for compatible tools
• Contractors who need a gasoline-powered 120V generator
• Buyers who prefer a simple recoil-start generator

The generator’s 4-gallon fuel tank and 14-hour maximum runtime at 25% load also make it useful for longer operating periods when the electrical demand is relatively low.

Who Should Consider Something Else?

The WGen3600v is not the right configuration for every buyer.

Consider another generator if you specifically need:

• Dual-fuel operation with gasoline and propane
• Inverter technology
• Electric start
• Built-in carbon monoxide sensing
• 240V output
• CARB compliance
• A substantially lighter generator
• A quieter generator for frequent campground use

These aren’t necessarily flaws; they are simply limitations of the WGen3600v’s design.

For example, Westinghouse’s current lineup includes other WGen models with CO sensors and dual-fuel configurations, so buyers should compare the exact model number rather than assuming all WGen generators have the same features.

Westinghouse WGen3600v: Final Thoughts for 2026

The Westinghouse WGen3600v is a straightforward conventional gasoline generator built around 3,600 running watts and 4,650 peak watts.

Its 4-gallon tank provides up to 14 hours of runtime at a 25% load, while the 30A TT-30R outlet gives it a useful role for travel trailers and other compatible RV applications.

The generator also offers a 30A L5-30R outlet, a household 20A duplex outlet, automatic low-oil shutdown, overload protection, automatic voltage regulation, and a built-in fuel gauge.

The trade-offs are just as important. This is a conventional, non-inverter generator with recoil starting, no built-in CO sensor, no GFCI outlets, no 240V output, and no CARB compliance according to Westinghouse’s current specifications. The wheel and handle kit is also available separately.

For shoppers comparing portable generators in 2026, those details make it easier to determine whether the WGen3600v fits a specific power plan instead of choosing a generator based only on its peak wattage.
